Aten

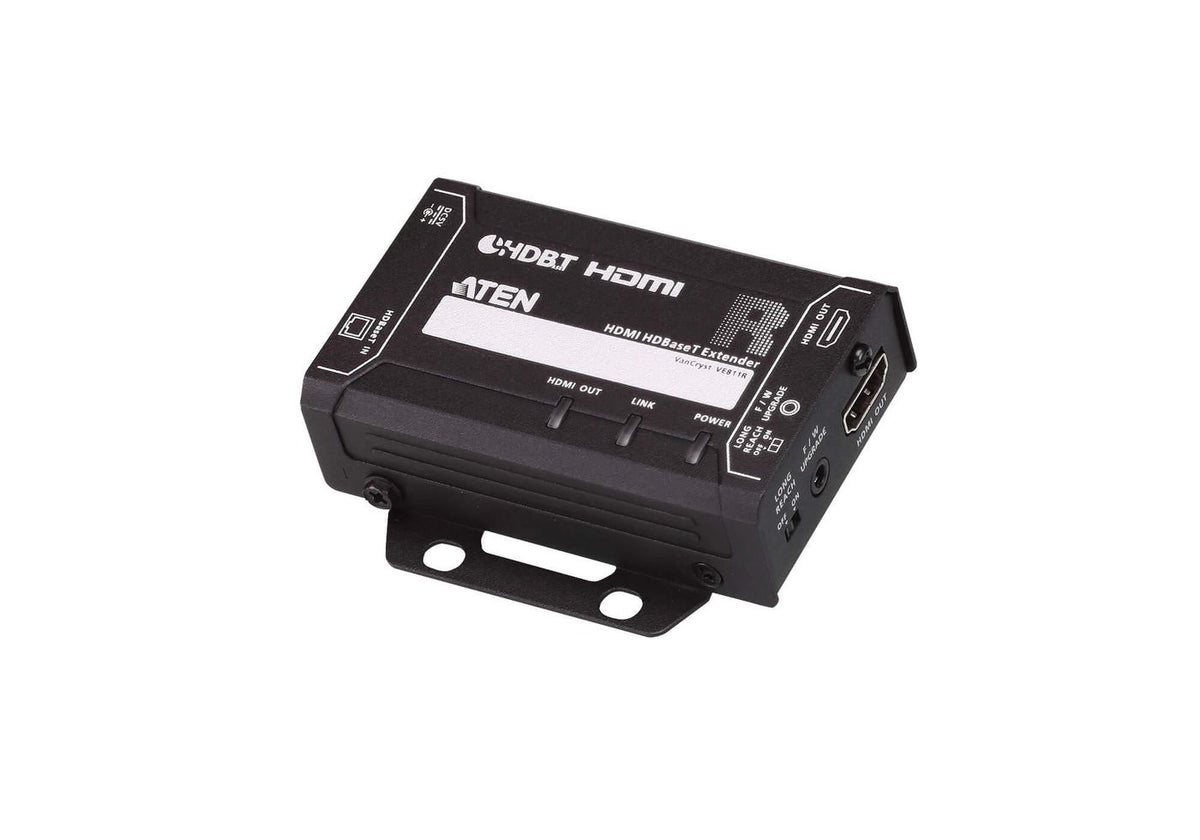

Aten VE811 HDMI HDBaseT Extender
Aten VE811 HDMI HDBaseT Extender
In stock — 11 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelVE811-AT-G
- EAN4719264645747
- BrandAten
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
ATEN HDMI HDBaseT Small Factor Extender. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V. Weight: 630 g, Receiver dimensions (WxDxH): 86.4 x 73 x 24.7 mm, Receiver weight: 170 g. Quantity per pack: 2 pc(s), Package width: 59 mm, Package depth: 239 mm
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.<br>1x VE811T HDMI HDBaseT Transmitter<br>1x VE811R HDMI HDBaseT Receiver<br>2x 0AD6-1F05-26EG Power Adapters<br>1x User Instructions
- HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- HDCP 2.2 compatible
Specifications
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 630 g |
| Receiver dimensions (WxDxH) | 86.4 x 73 x 24.7 mm |
| Receiver weight | 170 g |
| Transmitter dimensions (WxDxH) | 86.4 x 73 x 24.7 mm |
| Transmitter weight | 160 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 705 g |
| Packaging content | |
| Quick start guide | Yes |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.02 kg |
| Master (outer) case net weight | 3.15 kg |
| Products per master (outer) case | 5 pc(s) |
Documents
- Brand
- Aten
- Model / part no.
- VE811-AT-G
- EAN
- 4719264645747
- Category
- AV Extenders
- Weight
- 630 g, Receiver dimensions (WxDxH): 86.4 x 73 x 24.7 mm, Receiver weight: 170 g. Quantity per pack: 2 pc(s), Package width: 59 mm, Package depth: 239 mm
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.<br>1x VE811T HDMI HDBaseT Transmitter<br>1x VE811R HDMI HDBaseT Receiver<br>2x 0AD6-1F05-26EG Power Adapters<br>1x User Instructions
- HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Condition
- New, genuine
