Aten
Aten CAT5 Video Extender
Aten CAT5 Video Extender
In stock — 8 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelVE170R-AT-G
- EAN4710423777286
- BrandAten
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
ATEN VGA Over Cat5e/6 Audio/Video Receiver (300m). Type: AV receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Connectivity technology: Wired. Operating voltage (receiver): 5.3 V, Power consumption (RX): 3.32 W. Width: 127.7 mm, Depth: 90.4 mm, Height: 22.6 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm

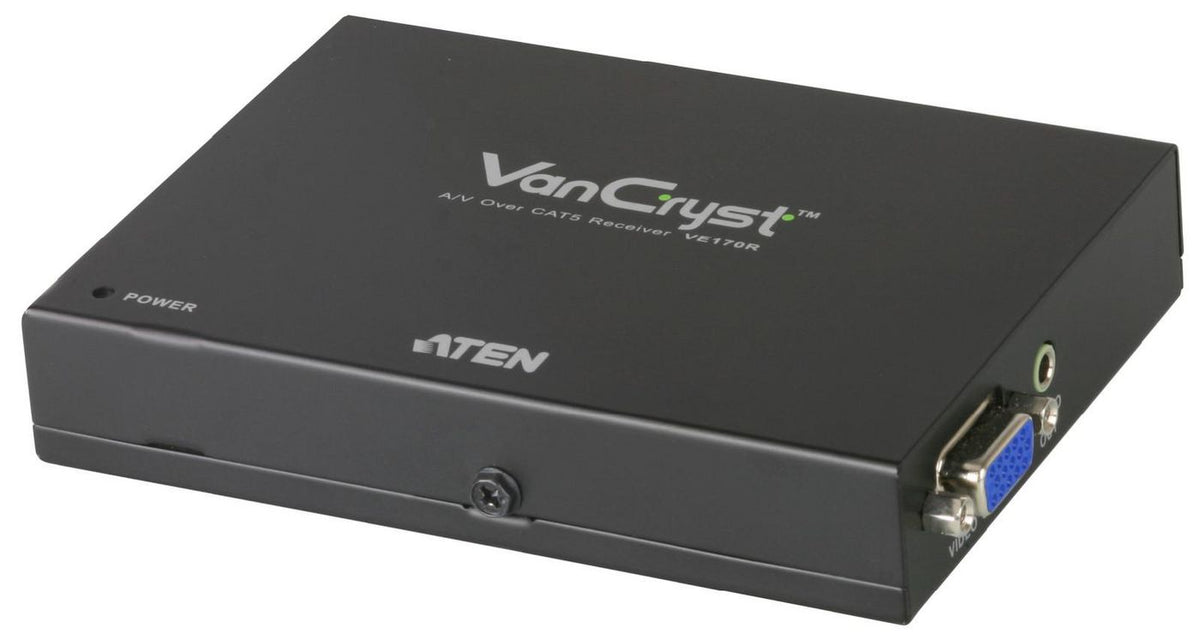

The VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.<br><br>1x VE170R A/V Over Cat 5 Receiver<br>1x Power Adapter<br>1x Mounting Kit (1 pc)<br>1x User Instructions
- Long distance transmission up to 300 m
- Superior video quality - 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
- Audio enabled (mono)
- Adjustable gain/compensation control
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Specifications
| Features | |
|---|---|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 300 m |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported graphics resolutions | 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Bandwidth | 300 MHz |
| Material | Metal |
| Rack mounting | Yes |
| Impedance | 75 Ω |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| VGA (D-Sub) output ports | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
| Power | |
| Operating voltage (receiver) | 5.3 V |
| Power consumption (RX) | 3.32 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 127.7 mm |
| Depth | 90.4 mm |
| Height | 22.6 mm |
| Weight | 460 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 560 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.2 kg |
| Master (outer) case net weight | 2.3 kg |
| Products per master (outer) case | 5 pc(s) |
