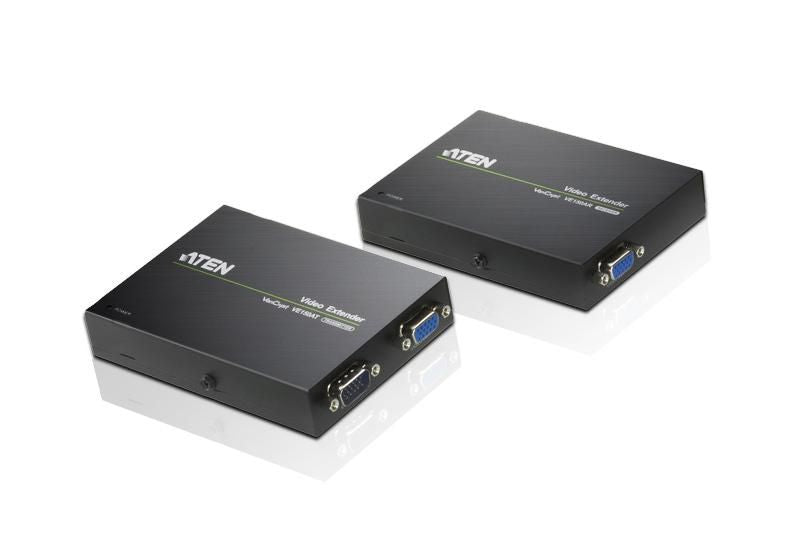

Aten VGA Over Cat5e/6 Video Extender 150meter
Aten VGA Over Cat5e/6 Video Extender 150meter
In stock — 12 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelVE150A-AT-G
- EAN4710423778894
- BrandAten
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
ATEN VGA Over Cat5e/6 Video Extender 150meter. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5. Connectivity technology: Wired, Video in: 1 x HDB-15, Video out: 1 x HDB-15. Power consumption (transmitter) (max): 1 W, Power consumption (receiver) (max): 1.2 W. Weight: 970 g, Receiver dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm, Receiver weight: 240 g. Quantity per pack: 2 pc(s), Package width: 62 mm, Package depth: 283 mm
VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.<br><br>1x VE150AT Video Extender (Local unit)<br>1x VE150AR Video Extender (Remote unit)<br>2x Power Adapters<br>1x VGA Cable<br>1x Mounting Kit<br>1x User Instructions
- Uses Cat 5e cables to connect the local and remote units
- Supports one local and one remote display
- Long distance transmission – up to 150 m
- Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
Specifications
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Material | Metal |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Impedance | 75 Ω |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDBaseT port | Yes |
| VGA (D-Sub) input ports | 1 |
| Video in | 1 x HDB-15 |
| Video out | 1 x HDB-15 |
| Power | |
| Power consumption (transmitter) (max) | 1 W |
| Power consumption (receiver) (max) | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 970 g |
| Receiver dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight | 240 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.11 kg |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.92 kg |
| Master (outer) case net weight | 4.85 kg |
| Products per master (outer) case | 5 pc(s) |
Documents
- Brand
- Aten
- Model / part no.
- VE150A-AT-G
- EAN
- 4710423778894
- Category
- AV Extenders
- Weight
- 970 g, Receiver dimensions (WxDxH): 127.7 x 90.4 x 22.6 mm, Receiver weight: 240 g. Quantity per pack: 2 pc(s), Package width: 62 mm, Package depth: 283 mm
VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.<br><br>1x VE150AT Video Extender (Local unit)<br>1x VE150AR Video Extender (Remote unit)<br>2x Power Adapters<br>1x VGA Cable<br>1x Mounting Kit<br>1x User Instructions
- Uses Cat 5e cables to connect the local and remote units
- Condition
- New, genuine
