Aten

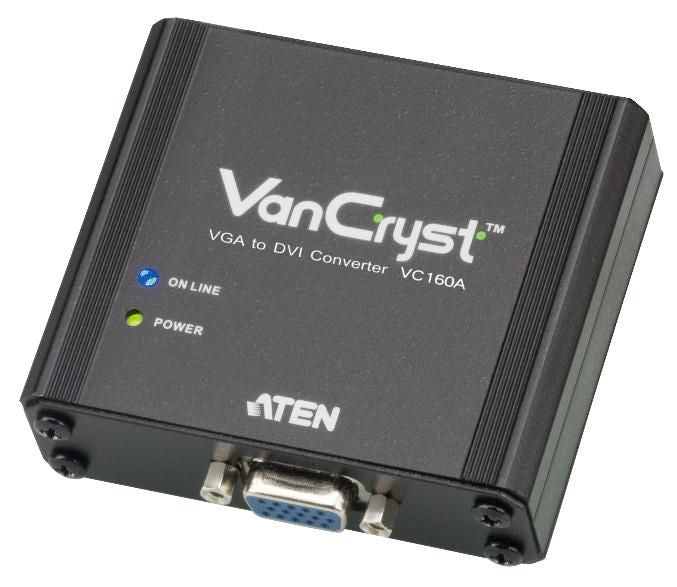

Aten VGA to DVI Converter
Aten VGA to DVI Converter
Out of stock
Email us for the restock date.
- ModelVC160A-AT-G
- EAN4710423777743
- BrandAten
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
ATEN VGA to DVI converter. Product colour: Black, Housing material: Metal. Maximum video resolution: 1920 x 1200 pixels, Video resolutions: 1920 x 1200 pixels, Bandwidth: 165 MHz. Host interface: VGA (D-Sub), Output interface: DVI-D. Operating voltage: 5.3 V. Width: 79 mm, Depth: 78.1 mm, Height: 24.4 mm
The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display. It uses dual power<br><br>sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.<br><br>1x VC160A VGA to DVI Converter<br>1x Power Adapter<br>1x User Instructions
- Converts analog VGA signals to DVI output
- Multiplatform support – Windows and Mac
- Supports dual power sources – VGA port or power adapter (in case the VGA port cannot provide sufficient power)
- Smart Video Display – Image quality is optimized based on the available resolution of the output device
Specifications
| Features | |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| Video | |
| Maximum video resolution | 1920 x 1200 pixels |
| Video resolutions | 1920 x 1200 pixels |
| Bandwidth | 165 MHz |
| Ports & interfaces | |
| Host interface | VGA (D-Sub) |
| Output interface | DVI-D |
| Power | |
| Operating voltage | 5.3 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 78.1 mm |
| Height | 24.4 mm |
| Weight | 250 g |
| Packaging data | |
| Quick installation guide | Yes |
| Quantity | 1 |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Package weight | 320 g |
| Logistics data | |
| Master (outer) case net weight | 2.5 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.55 kg |
| Products per master (outer) case | 10 pc(s) |
Documents
- Brand
- Aten
- Model / part no.
- VC160A-AT-G
- EAN
- 4710423777743
- Category
- Video Converters
- Weight
- 0.25 kg
- Condition
- New, genuine
