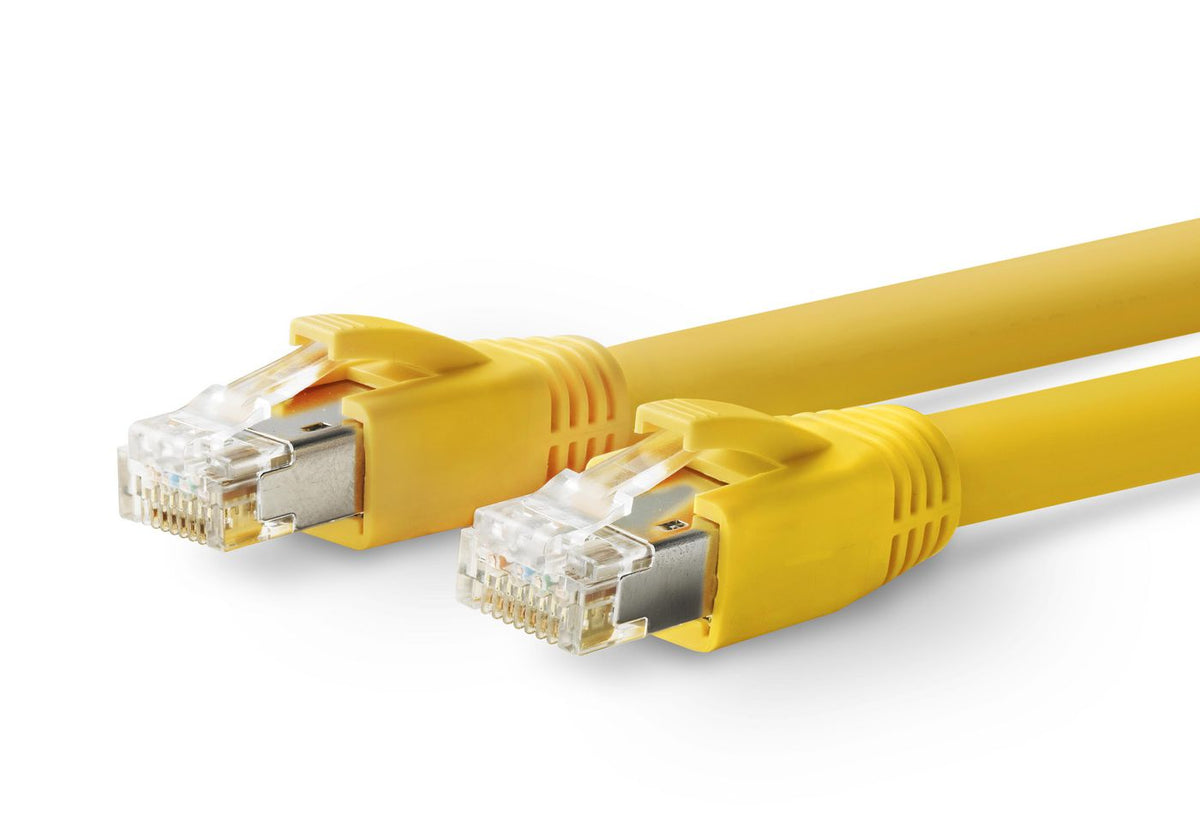

Vivolink CAT Cable for HDBASET

Vivolink PROCAT40. Cable length: 40 m, Cable standard: Cat6a, Cable shielding: F/FTP (FFTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Yellow

CAT cable for HDBaseT RJ45 /FTP CAT6A 4PR 23AWG installation. Low smoke halogeen free jacket<br>Vivolink network cables are designed specifically for HDBaseT transmission. This means that you will get a robust and stable installation. <br>Cables are assembled with RJ45 connectors in both ends, this will ensures perfect termination in connector and easy installation. <br>Solid core wires in pure copper 23AWG ensures rich power perfor mance even on long lengths. <br>The individual and outer shielding in aluminum foil protects signal from any disturbance and optimal signal performance. <br>The cable jacket is produced in LSZH low smoke, zero halogen material so it can be used for fixed installations in buildings. <br>- F/FTP CAT6A 4PR 23AWG TESTED TO 550MHz <br>- Outer jacket: LSZH 0D ̄8mm +/- 0.2mm <br>- Shielding: Aluminium foil (double shielding) <br>- Inner conductor: Pure copper diameter 0.573mm <br>- Drain wire: Pure copper 0.16mm

• F/FTP CAT6A 4PR 23AWG TESTED TO 550MHz
• Outer jacket: LSZH 0D ̄8mm +/- 0.2mm
• Shielding: Aluminium foil (double shielding)
• Inner conductor: Pure copper diameter 0.573mm
• Drain wire: Pure copper 0.16mm

Specifications

Documents

• EU Declaration of Conformity (PDF)
• EU Declaration of Conformity (PDF)
• Product Brochure (PDF)
