MicroConnect

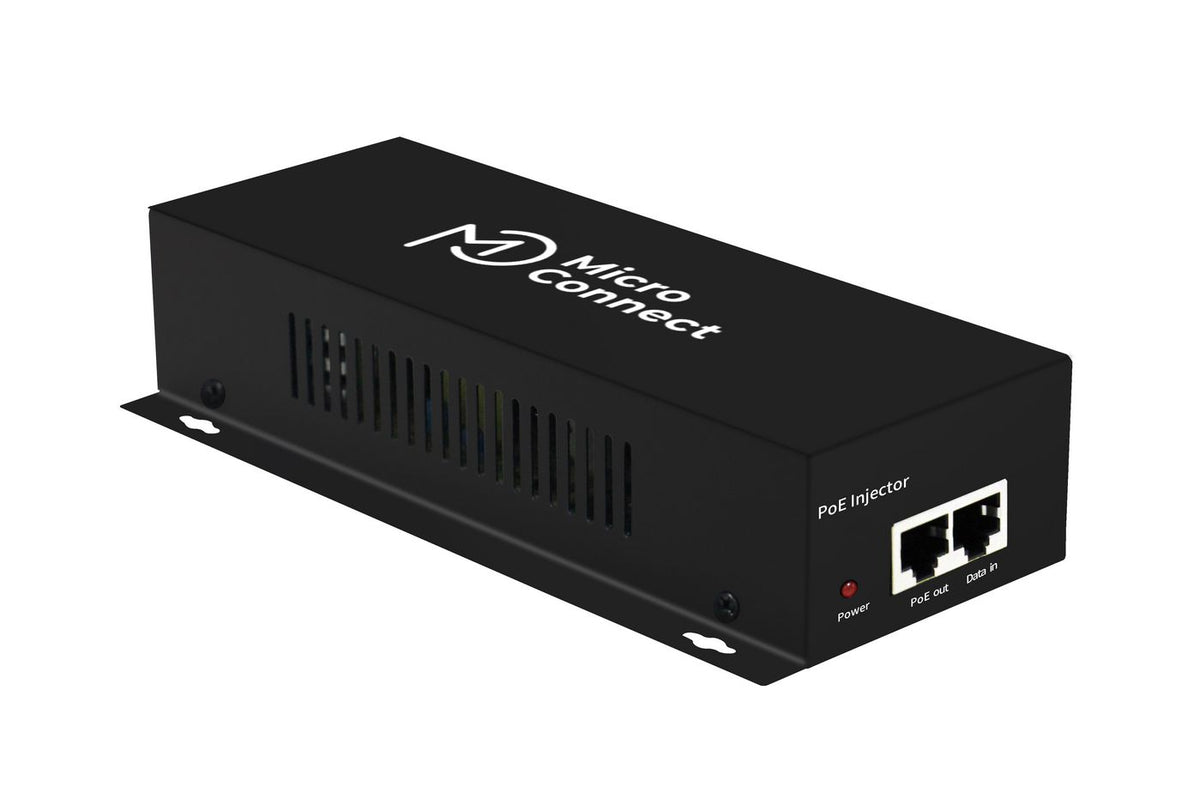

MicroConnect 30W 802.3af/at PoE Injector UK
MicroConnect 30W 802.3af/at PoE Injector UK
In stock — 8 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelPOEINJ-30W-UK
- EAN5706998795205
- BrandMicroConnect
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Microconnect POEINJ-30W-UK. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10 Mbit/s, Cabling technology: 10/100. Power over Ethernet (PoE) voltage: 48 V, Output power: 30 W, AC adapter input voltage: 100 - 240 V. Compliance certificates: RoHS, Certification: CE, FCC. Width: 140 mm, Depth: 57 mm, Height: 182 mm. Number of products included: 1 pc(s)
100-220V, 50-60HZ, 52V DC, Maximum speed rate: 1000Mbps, Transmission distance: 100m<br>The POEINJ-30W is a single-port Gigabit PoE (Power over Ethernet) device with two RJ45 ports, one port for the Ethernet data input,<br>another port for the integrated data and power supply output. Since the power supply itself does not have the data switch function,<br>it needs to work together with a Network switch. It mixes the data of the network switch with the power supply, and transmits the<br>data and the power supply to the remote powered terminal through the network cable. This can solve the layout restrictions due to<br>the engineering power line. The device can provide PoE power supply to those Ethernet devices conforming to the IEEE802.3af/at<br>international standard, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras etc. It<br>provides efficient engineering solutions for locations where power is not available at the remote end or where the use of Ethernet<br>cable power increase system reliability and simplify equipment installation
- IEEE802.3af/at Standard
- Active & Support Gigabit data output
- 100-220V AC, 50-60HZ, 52VDC/0.58A
- PoE data & power transmission distance 100m
- Adaptor Power: 30W
- 1.0m UK Power Cord Included
- Power protection for input over voltage/under voltage, output over voltage, and each output over current short circuit protection and other functions
- System reliability:MTBF>100k hours
Specifications
| Network | |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10 Mbit/s |
| Cabling technology | 10/100 |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3af |
| Cable types supported | Cat5 |
| Features | |
| Plug and Play | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) voltage | 48 V |
| Output power | 30 W |
| AC adapter input voltage | 100 - 240 V |
| Suitable for use in country/location | United Kingdom |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 57 mm |
| Height | 182 mm |
| Weight | 250 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 57 mm |
| Package height | 182 mm |
| Package weight | 450 g |
Documents
- Brand
- MicroConnect
- Model / part no.
- POEINJ-30W-UK
- EAN
- 5706998795205
- Category
- PoE Adapters
- Weight
- 0.25 kg
- Condition
- New, genuine
