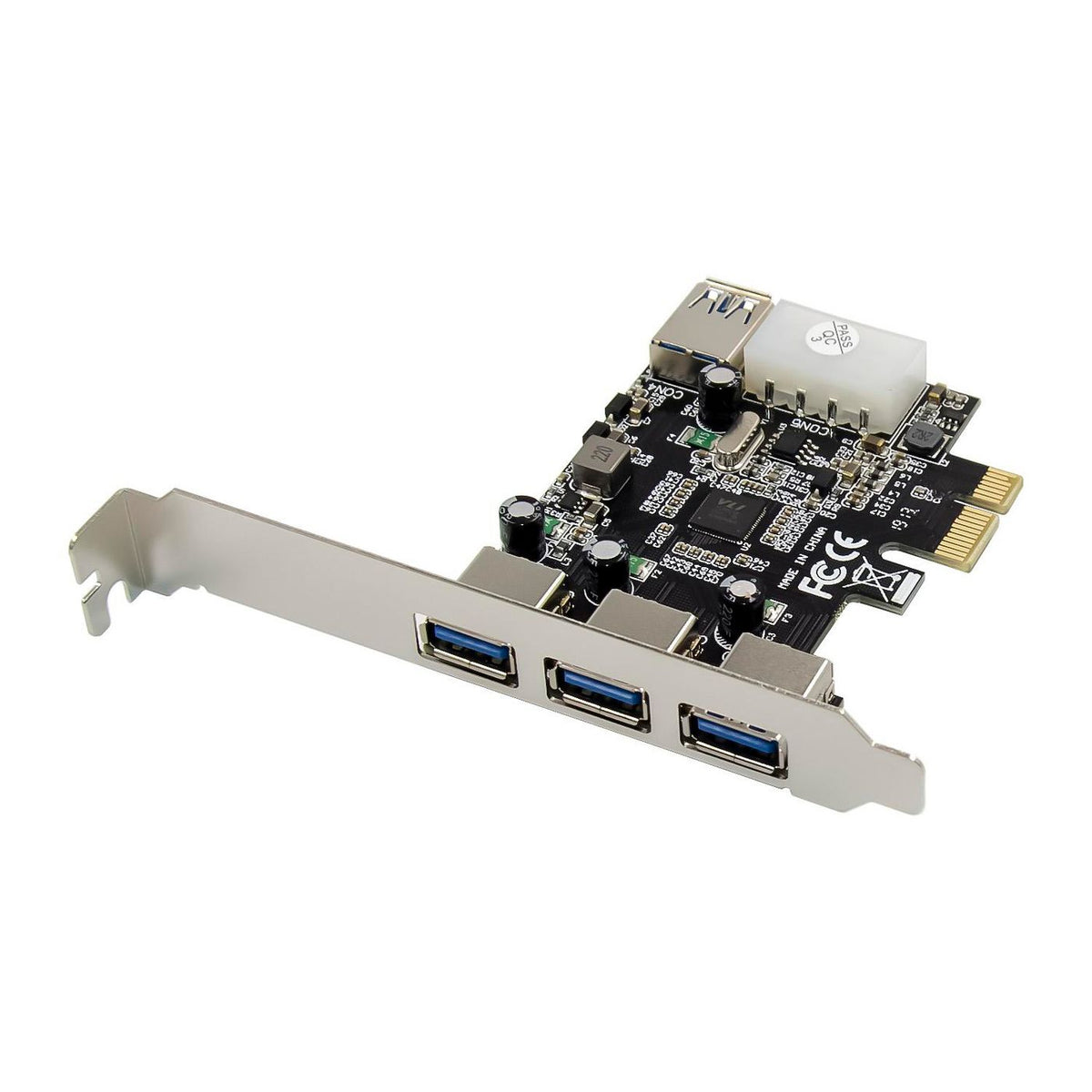

MicroConnect 3+1 port USB 3.0 PCIe card
MicroConnect 3+1 port USB 3.0 PCIe card
In stock — 20 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelMC-USB3.0-F2B2-V2
- EAN5712505805923
- BrandMicroConnect
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Microconnect MC-USB3.0-F2B2-V2. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1). Chipset: Via VL805, Bandwidth: 5 Gbit/s. Output voltage: 5 V, Output current: 0.9 A. Width: 90 mm, Depth: 67 mm, Weight: 66 g. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 112 mm
This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. low profile bracket included.
- Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
- Compliant to Universal Serial Bus 2.0 Specifications
- Compliant to eXtensible Host Controller Interface Specification Revision 1.0
- Compliant with PCI Express base specification 2.0
- Support Legacy USB Function, Four Down-stream ports Support Super-Speed(SS) High-Speed(HS),Full-Speed(FS) and Low-Speed(LS)
- Max. 5V/900mA power output to each USB 3.0 Port
- 4-pin power connector for extra power
- Fully plug ,play and hot plug compatible
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Design | |
| Internal | Yes |
| Features | |
| Chipset | Via VL805 |
| Bandwidth | 5 Gbit/s |
| Power | |
| Output voltage | 5 V |
| Output current | 0.9 A |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 67 mm |
| Weight | 66 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 112 mm |
| Package height | 28 mm |
| Package weight | 76 g |
Documents
- Brand
- MicroConnect
- Model / part no.
- MC-USB3.0-F2B2-V2
- EAN
- 5712505805923
- Category
- Interface Cards & Adapters
- Weight
- 66 g. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 112 mm
This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. low profile bracket included.
- Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
- Condition
- New, genuine
