MicroConnect
MicroConnect 1 port Parallel, 2 port Serial
MicroConnect 1 port Parallel, 2 port Serial
In stock — 10 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelMC-PCIE-MCS1P2S
- EAN5712505804964
- BrandMicroConnect
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Microconnect MC-PCIE-MCS1P2S. Host interface: PCIe, Output interface: Parallel. Chipset: ASIX MCS9901. Weight: 100 g. Package width: 146 mm, Package depth: 111 mm, Package height: 28 mm

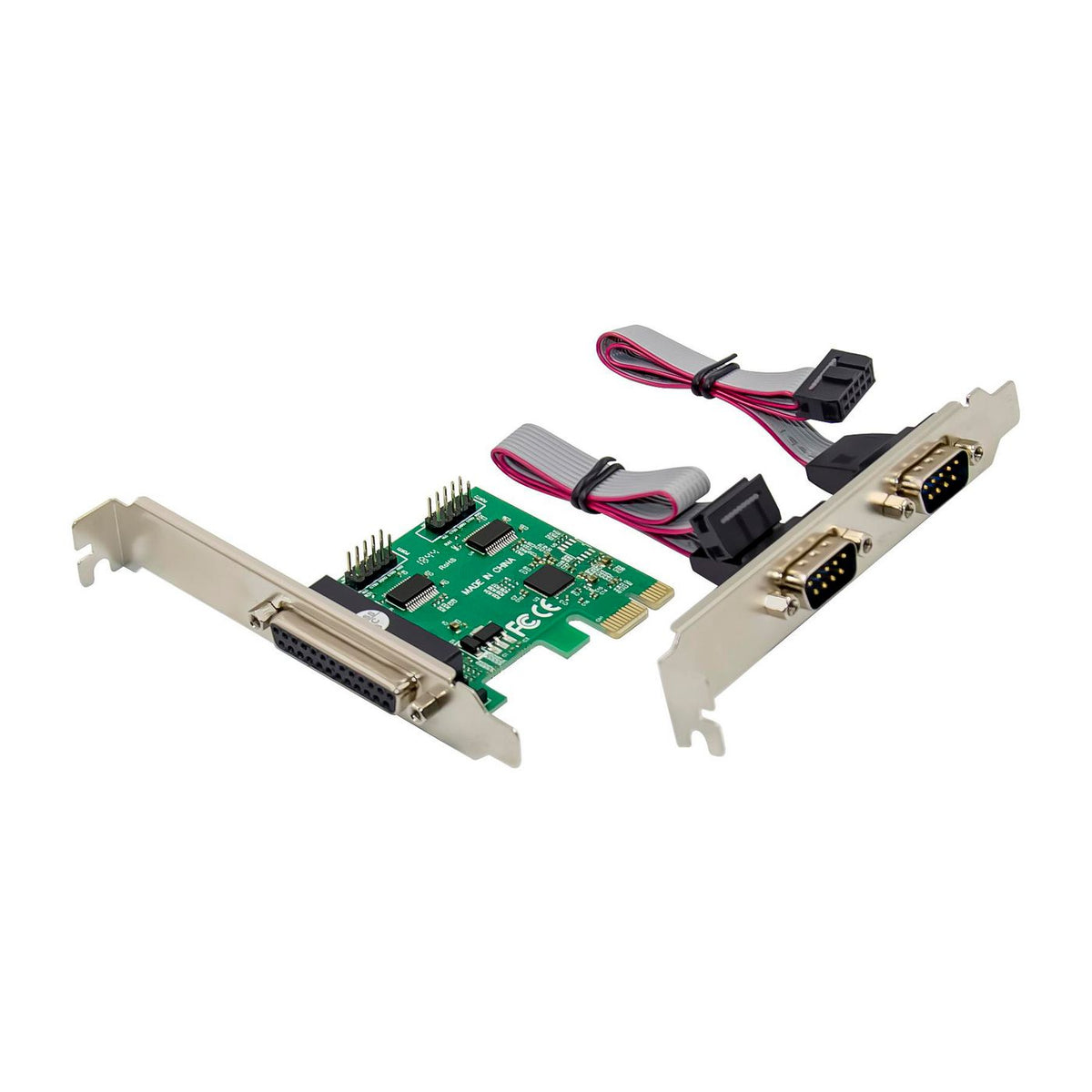

MC-PCIE-MCS1P2S single Port parallel DB25 and dual Port Serial DB9 PCI-e x1 card can be installed in to any system with a free PCI Express slot, allowing you to connect Peripherals and Serial to any computer system. Relying on a native single-chip design, this adapter harnesses the true capability of PCI Express - ensuring maximum performance and reliability.
- Compliant with PCI Express Base Specification 1.0a
- Supports 2 x UART serial port
- Built-in 16C450/550 compatible UART
- On chip 256 byte FIFOs in transmit and receive path of each serial port
- Serial data transfer rate up to 230400bps
- Supports Standard Parallel Port (SPP), Enhanced Parallel (EPP) & Enhanced Capability Port (ECP)
- Parallel data transfer rate up to 1.5Mbps
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | Parallel |
| Serial ports quantity | 2 |
| Parallel ports quantity | 1 |
| Design | |
| Internal | Yes |
| Features | |
| Chipset | ASIX MCS9901 |
| Weight & dimensions | |
| Weight | 100 g |
| Packaging data | |
| Package width | 146 mm |
| Package depth | 111 mm |
| Package height | 28 mm |
| Package weight | 102 g |
Documents
- Brand
- MicroConnect
- Model / part no.
- MC-PCIE-MCS1P2S
- EAN
- 5712505804964
- Category
- Interface Cards & Adapters
- Weight
- 100 g. Package width: 146 mm, Package depth: 111 mm, Package height: 28 mm
MC-PCIE-MCS1P2S single Port parallel DB25 and dual Port Serial DB9 PCI-e x1 card can be installed in to any system with a free PCI Express slot, allowing you to connect Peripherals and Serial to any computer system. Relying on a native single-chip design, this adapter harnesses the true capability of PCI Express - ensuring maximum performance and reliability.
- Compliant with PCI Express Base Specification 1.0a
- Condition
- New, genuine
