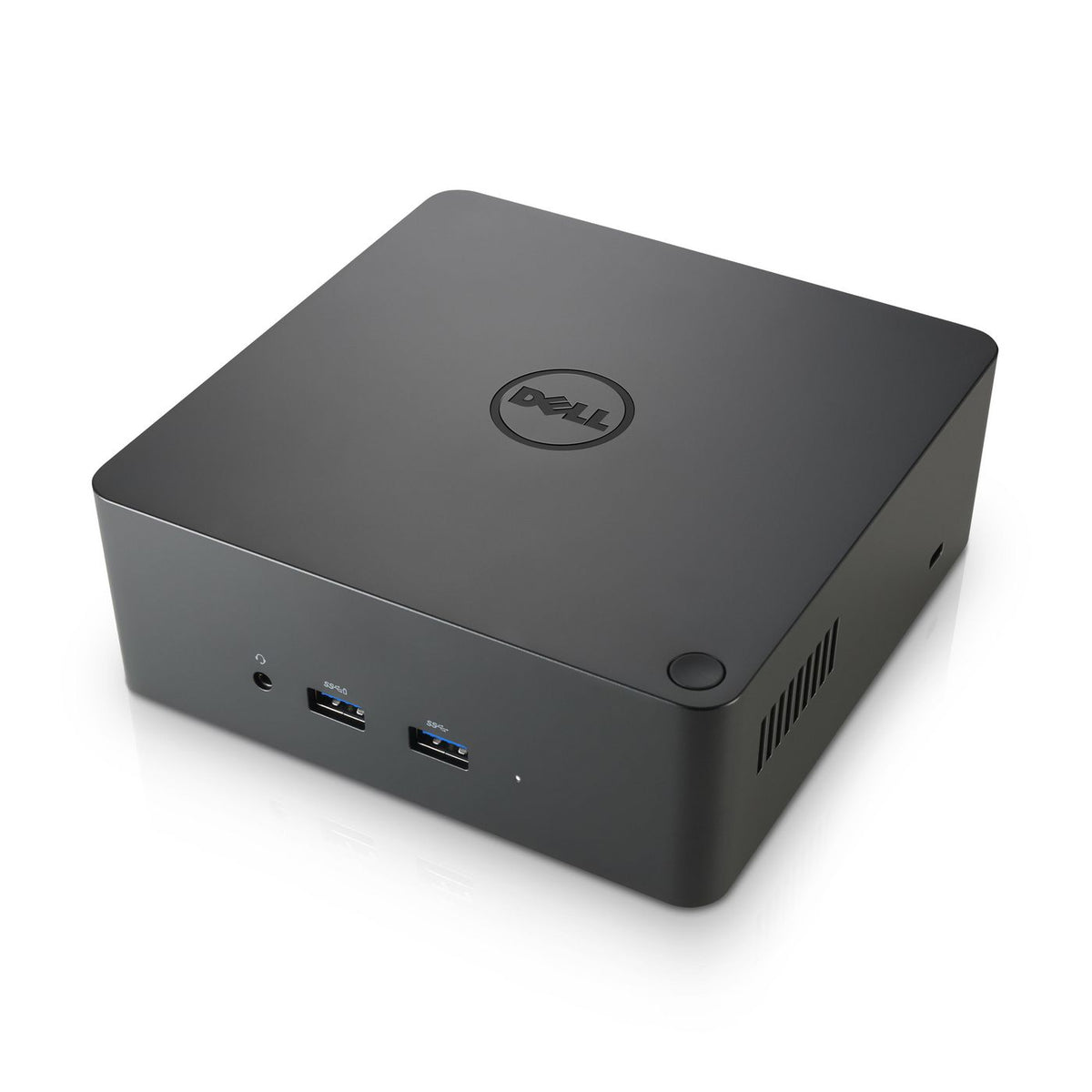

Dell Thunderbolt Dock TB16
Dell Thunderbolt Dock TB16
Out of stock
Email us for the restock date.
- ModelJFD1T
- EAN5706998264978
- BrandDell
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
DELL TB16. Connectivity technology: Wired, Host interface: Thunderbolt 3, HDMI version: 1.4a. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Cable lock slot type: Kensington, Brand compatibility: Dell. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Depth: 145 mm, Height: 52 mm, Weight: 720 g
<b>One dock. One cable. Ultimate Performance.</b><br>The Dell Business Thunderbolt Dock - TB16 with 240W Adapter with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.<br><br><b>Small footprint and big flexibility</b><br>The Dell Business Thunderbolt Dock - TB16 with 240W Adapter is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.<br><br><b>One source for power</b><br>The Dell Business Thunderbolt Dock - TB16 with 240W Adapter can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.<br><br><b>Connections and Features:</b><br>- Supports 3 displays<br>- Two USB 2.0 ports<br>- Three USB 3.0 ports<br>- Thunderbolt 3 (USB-C) port<br>- Speaker output (rear)<br>- Combo audio (front)<br>- Gigabit Ethernet<br>- Kensington Lock Slot<br>- 7.4 mm DC-IN Power Input<br><br><b>What's in the Box</b><br>Dell Business Thunderbolt Dock TB16<br>USB Type-C Thunderbolt™ Cable<br>240W AC Adapter<br><br><b>Compatibility</b><br>This product is compatible with the following systems:<br><br>XPS 13 (9350)<br>XPS 15 (9550)<br>XPS 12 (9250)<br>Precision 15 7000 Series (7510)<br>Precision 17 7000 Series (7710)<br>Precision 15 3000 Series (3510)<br>Precision 15 5000 Series (5510)<br>XPS 13 (9360)<br>XPS 9560<br>Precision 5520<br>Precision 3520
Specifications
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| Line-out | Yes |
| USB connector type | USB Type-A, USB Type-C |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| LED indicators | Yes |
| Brand compatibility | Dell |
| Compatibility | XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520 |
| Power | |
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.5 A |
| Power supply | 240 W |
| Output voltage | 19.5 V |
| Output current | 12.31 A |
| Power consumption (standby) | 5.8 W |
| Software | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Depth | 145 mm |
| Height | 52 mm |
| Weight | 720 g |
| Packaging content | |
| Cables included | USB Type-C |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
Documents
- Brand
- Dell
- Model / part no.
- JFD1T
- EAN
- 5706998264978
- Category
- Docks & Port Replicators
- Weight
- 720 g
<b>One dock. One cable. Ultimate Performance.</b><br>The Dell Business Thunderbolt Dock - TB16 with 240W Adapter with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.<br><br><b>Small footprint and big flexibility</b><br>The Dell Business Thunderbolt Dock - TB16 with 240W Adapter is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.<br><br><b>One source for power</b><br>The Dell Business Thunderbolt Dock - TB16 with 240W Adapter can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.<br><br><b>Connections and Features:</b><br>- Supports 3 displays<br>- Two USB 2.0 ports<br>- Three USB 3.0 ports<br>- Thunderbolt 3 (USB-C) port<br>- Speaker output (rear)<br>- Combo audio (front)<br>- Gigabit Ethernet<br>- Kensington Lock Slot<br>- 7.4 mm DC-IN Power Input<br><br><b>What's in the Box</b><br>Dell Business Thunderbolt Dock TB16<br>USB Type-C Thunderbolt™ Cable<br>240W AC Adapter<br><br><b>Compatibility</b><br>This product is compatible with the following systems:<br><br>XPS 13 (9350)<br>XPS 15 (9550)<br>XPS 12 (9250)<br>Precision 15 7000 Series (7510)<br>Precision 17 7000 Series (7710)<br>Precision 15 3000 Series (3510)<br>Precision 15 5000 Series (5510)<br>XPS 13 (9360)<br>XPS 9560<br>Precision 5520<br>Precision 3520
Specifications
Ports & interfaces Connectivity technology Wired Host interface Thunderbolt 3 USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 HDMI ports quantity 1 HDMI version 1.4a VGA (D-Sub) ports quantity 1 DisplayPorts quantity 1 Mini DisplayPorts quantity 1 Thunderbolt 3 ports quantity 1 Microphone in No Combo headphone/mic port Yes Headphone connectivity 3.5 mm Line-out Yes USB connector type USB Type-A, USB Type-C DC-in jack Yes Network Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Performance Card reader integrated No Cable lock slot Yes Cable lock slot type Kensington Product colour Black LED indicators Yes Brand compatibility Dell Compatibility XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520 Power Power source type AC AC input voltage 100-240 V AC input frequency 50 - 60 Hz Input current 3.5 A Power supply 240 W Output voltage 19.5 V Output current 12.31 A Power consumption (standby) 5.8 W Software Windows operating systems supported Yes Operational conditions Operating temperature (T-T) 0 - 35 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 10 - 80% Storage relative humidity (H-H) 5 - 90% Weight & dimensions Depth 145 mm Height 52 mm Weight 720 g Packaging content Cables included USB Type-C AC adapter included Yes Manual Yes Logistics data Harmonized System (HS) code 84733020 Documents
