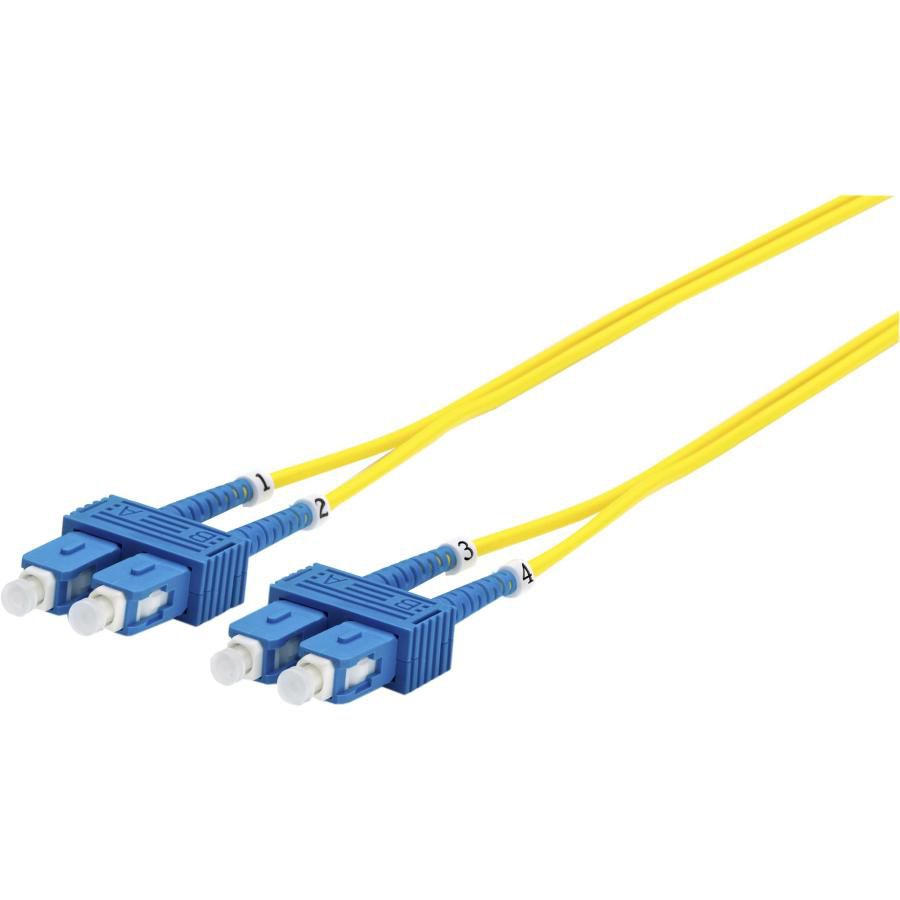

MicroConnect SC/UPC-SC/UPC 5m OS2 Fibre
MicroConnect SC/UPC-SC/UPC 5m OS2 Fibre
In stock — 7 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelFIB221005
- EAN7331990015150
- BrandMicroConnect
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Microconnect FIB221005. Cable length: 5 m, Fibre optic type: OS2, Connector 1: SC, Connector 2: SC, Core diameter: 9 µm, Full duplex
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
- Fibre Standard G.652.D
Specifications
| Features | |
|---|---|
| Cable length | 5 m |
| Fibre optic type | OS2 |
| Connector 1 | SC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Insertion loss | 0.3 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Cable diameter | 2 mm |
| Weight | 40 g |
| Packaging data | |
| Package width | 173 mm |
| Package depth | 166 mm |
| Package height | 28 mm |
| Package weight | 58 g |
Documents
- Brand
- MicroConnect
- Model / part no.
- FIB221005
- EAN
- 7331990015150
- Category
- SC/UPC Cables
- Weight
- 0.04 kg
- Condition
- New, genuine
