Zebra

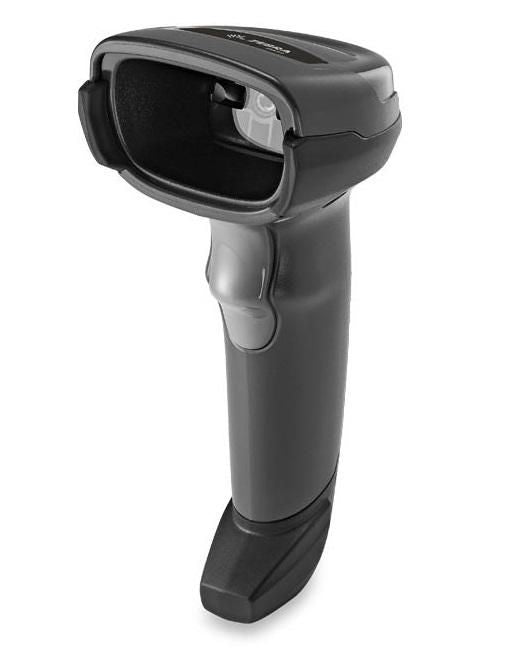

Zebra DS2208-SR Black USB Kit
Zebra DS2208-SR Black USB Kit
In stock — 6 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelDS2208-SR7U2100AZW
- EAN5711783381228
- BrandZebra
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Zebra DS2208. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP42, Certification: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2.... Power source type: DC, AC adapter output voltage: 5 V, Power consumption: 250 mA. Weight: 161.6 g, Width: 66 mm, Depth: 99 mm
<b>AFFORDABILITY AND SIMPLICITY DELIVERED</b><br>2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.<br><br>Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.<br><br>But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Working distance | 36.8 cm |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| Performance | |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Power | |
| Power source type | DC |
| AC adapter output voltage | 5 V |
| Power consumption | 250 mA |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
| Packaging data | |
| Cables included | Micro-USB |
| Charging base | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
Documents
- Brand
- Zebra
- Model / part no.
- DS2208-SR7U2100AZW
- EAN
- 5711783381228
- Category
- General Scanners
- Weight
- 161.6 g, Width: 66 mm, Depth: 99 mm
<b>AFFORDABILITY AND SIMPLICITY DELIVERED</b><br>2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.<br><br>Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.<br><br>But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Specifications
Scanning Type Handheld bar code reader Scanner type 1D/2D Sensor type LED Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. 2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 Optical sensor resolution (W x H) 640 x 480 pixels Working distance 36.8 cm Wavelength 645 nm Tilt reading angle -65 - 65° Pitch reading angle -65 - 65° Yaw reading angle -65 - 65° Motion tolerance (cm/s) 13 Ports & interfaces Connectivity technology Wired Standard interfaces USB, RS-232, RS-485, Keyboard wedge Performance International Protection (IP) code IP42 LED indicators Yes Product colour Black Certification EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B Power Power source type DC AC adapter output voltage 5 V Power consumption 250 mA Weight & dimensions Width 66 mm Depth 99 mm Height 165 mm Weight 161.6 g Packaging data Cables included Micro-USB Charging base No Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 5 - 95% Technical details Compliance certificates RoHS Logistics data Harmonized System (HS) code 84716070 Documents
