Aten 17.3" Widescreen DVI/HDMI CL6700MW-ATA-2XK06UG
Aten 17.3" Widescreen DVI/HDMI CL6700MW-ATA-2XK06UG
In stock — 20 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelCL6700MW-ATA-2XK06UG
- EAN4710469345210
- BrandAten
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
ATEN CL6700MW-ATA-2XK06UG. Keyboard port type: USB, Mouse port type: USB, USB connector type: USB Type-A, USB Type-B. HD type: Full HD, Maximum resolution: 1920 x 1080 pixels. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Display: LCD, Display diagonal: 43.9 cm (17.3"). Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1 A

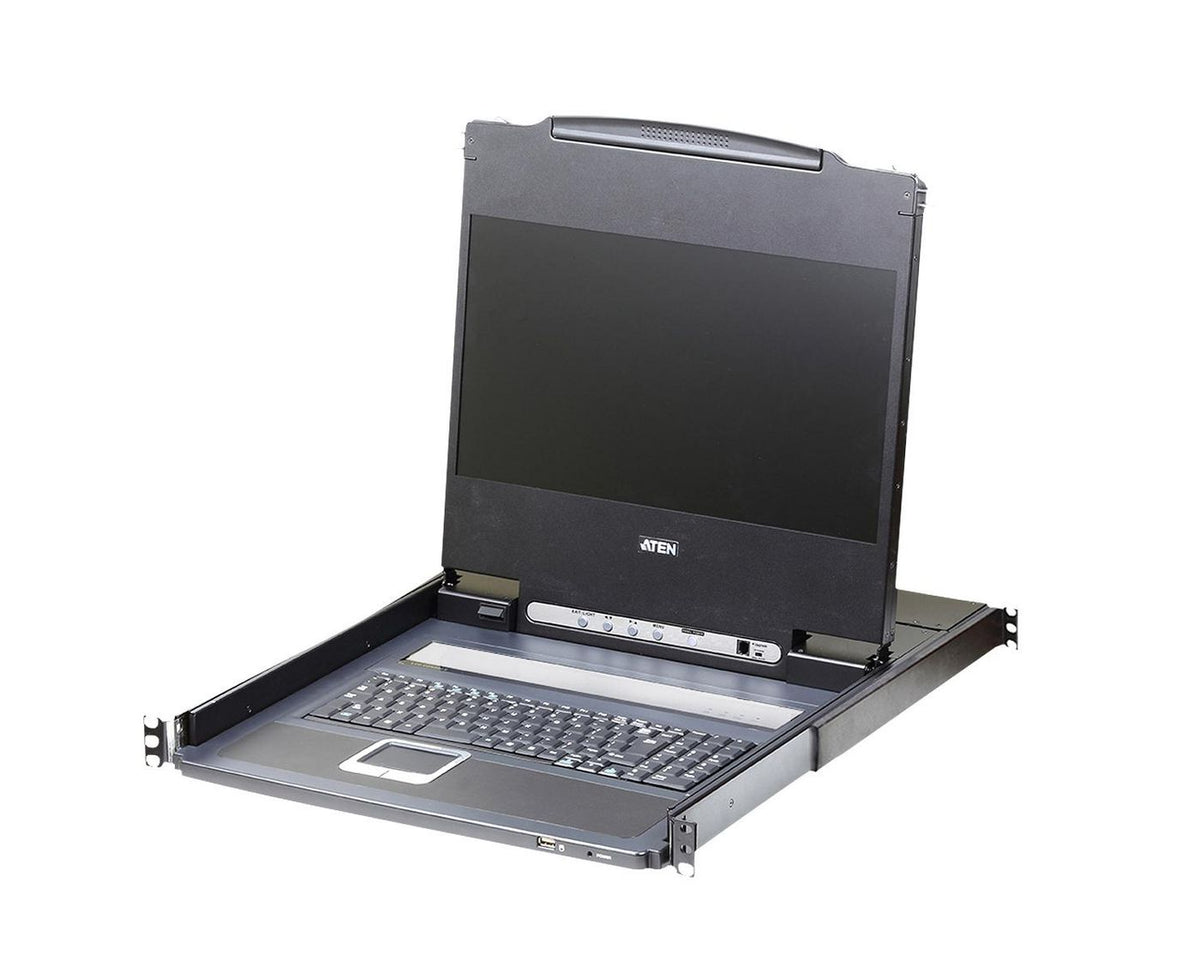

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1080 pixels |
| DDC/DDC2 supported | Yes |
| DDC2B support | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Keyboard language | UK English |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 43.9 cm (17.3") |
| Power | |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 19.4 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 589.2 mm |
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 11.4 kg |
| Packaging content | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
