Aten Dual rail + Dual Console 19"
Aten Dual rail + Dual Console 19"
Low stock — only 1 left
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelCL5800N-ATA-2XK06UG
- EAN4710469345180
- BrandAten
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
ATEN CL5800N. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Keyboard language: UK English. Power consumption (typical): 24 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 680.4 mm, Height: 44 mm, Depth: 480 mm

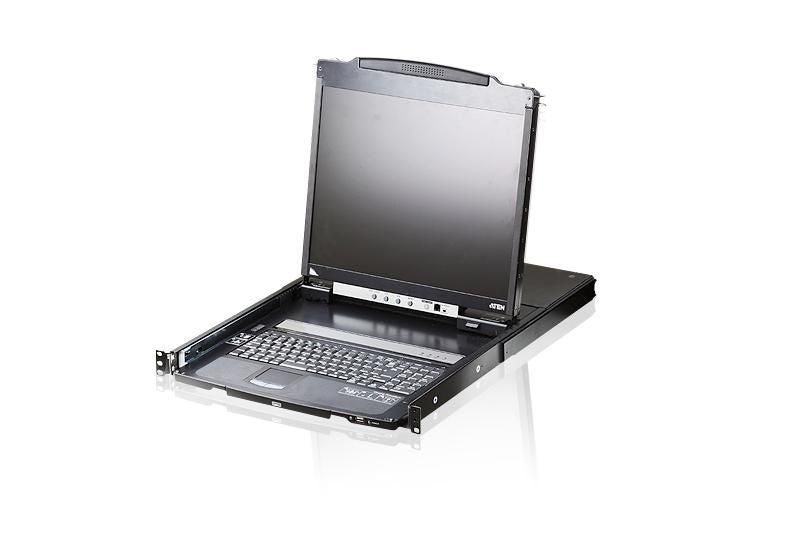

- The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.<br>- The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.<br>- For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.
Specifications
| Display | |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material | Metal |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| KVM switch ports quantity | 1 |
| LED indicators | Yes |
| Rack capacity | 1U |
| Ports & interfaces | |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Keyboard | |
| Built-in touchpad | Yes |
| Keyboard language | UK English |
| Hot keys | Yes |
| Power | |
| Power consumption (typical) | 24 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 680.4 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 14.3 kg |
| Packaging content | |
| Manual | Yes |
