Aten 8 Port 19" LCD KVMP Switch

ATEN CL5708N. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB. Keyboard language: Nordic, Keyboard layout: QWERTY. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Input current: 1 A. Width: 689.2 mm, Height: 44 mm, Depth: 480 mm

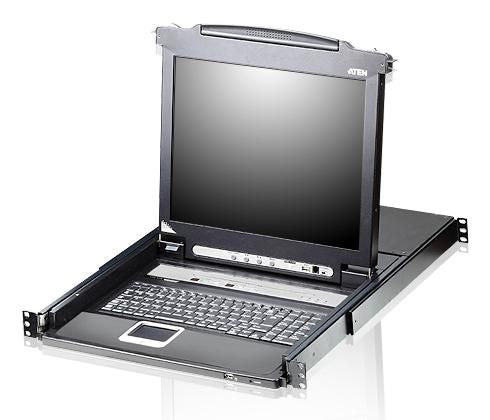

The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.<br><br>The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.<br><br>The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.<br><br>Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
• Integrated KVM console with 17", 17.3” or 19" LED-backlit LCD monitor in a Slideaway™ housing
• Daisy-chain up to 31 additional units – controls up to 256 computers from a single console
• USB port allows each computer to access USB peripherals (inapplicable to CL5708MW)

Specifications

Documents

• Quick Start Guide (PDF)
• CAD Drawing (PDF)
• User manual (PDF)
• Product Brochure (PDF)
