APC
APC Power Cord Locking C19 to C20
APC Power Cord Locking C19 to C20
In stock — 93 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelAP8760
- EAN731304288145
- BrandAPC
- ConditionNew, genuine
Buying in volume or reselling? Write to info@nexakft.com or call +36 30 270 0378 for quantity pricing.
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details

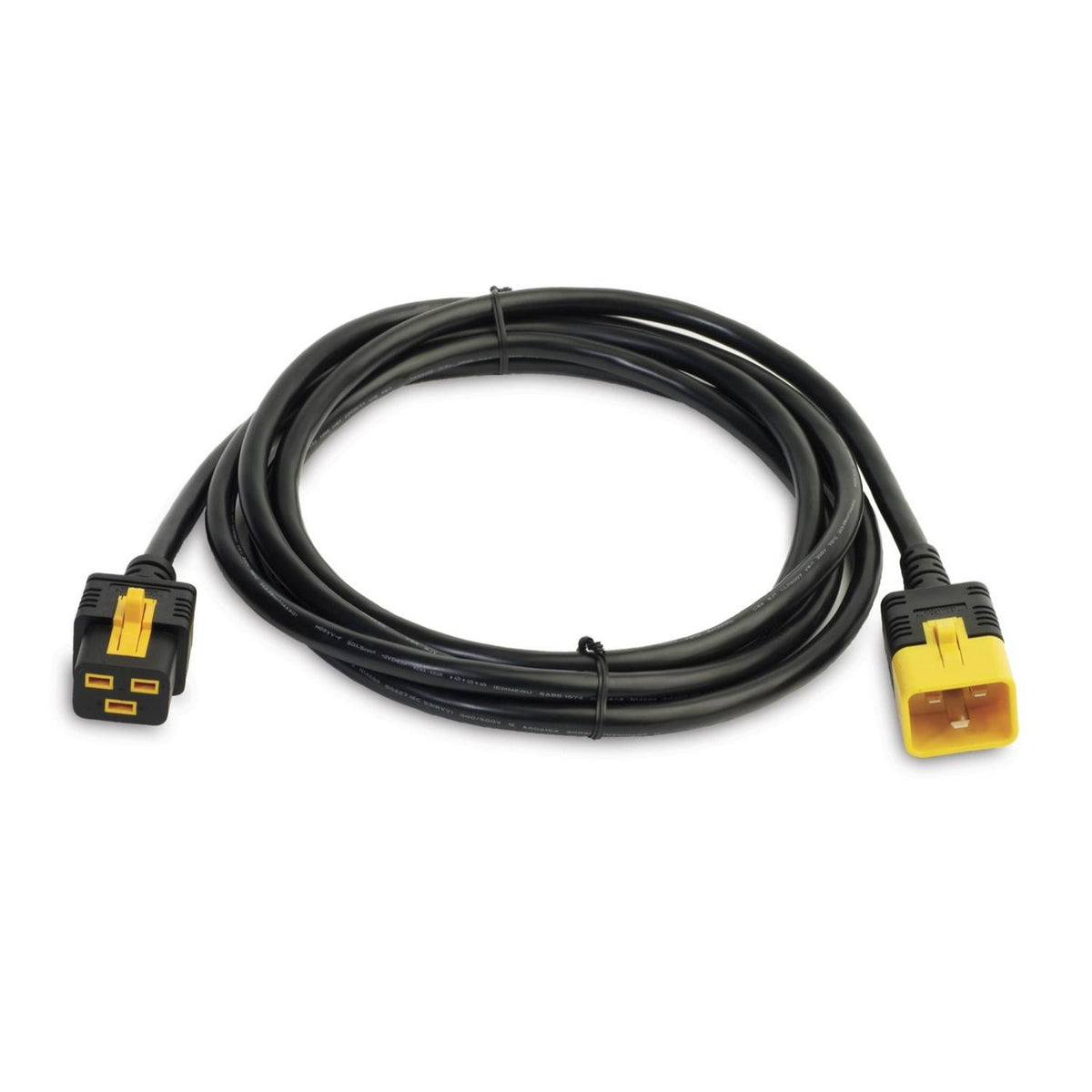

APC Power Cord, Locking C19 to C20, 3.0m. Cable length: 3 m, Connector 1: IEC C20, Connector 2: C20 coupler. Input voltage: 230 V, Input current: 16 A
AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
- Locking IEC receptacle to reduce risk of accidental disconnections
- Universal fit in any IEC receptacles
- Output jumpers in multiple lengths and configurations
- Exclusive locking feature for APC AP8000 range of Rack PDUs
- Multi region approved with regional input sockets
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 3 m |
| Connector 1 | IEC C20 |
| Connector 2 | C20 coupler |
| Power | |
| Input voltage | 230 V |
| Input current | 16 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CCC; CSA; PSE; UL listed; VDE |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 45 mm |
| Height | 230 mm |
| Weight | 510 g |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 45 mm |
| Package height | 230 mm |
| Package weight | 510 g |
| Technical details | |
| Sustainable packaging | No |
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Proposition 65 | Yes |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Customs product code (TARIC) | 8544429090 |
| Harmonized System (HS) code | 84733080 |
| Total carbon footprint (kg of CO2e) | 59.27608845625331 |
| Other features | |
| Input connection type | IEC 60320 C20 |
| Dimensions (WxDxH) | 230 x 45 x 230 mm |
| Weight (imperial) | 0.51 kg (1.12 lbs) |
| Country of origin | India |
