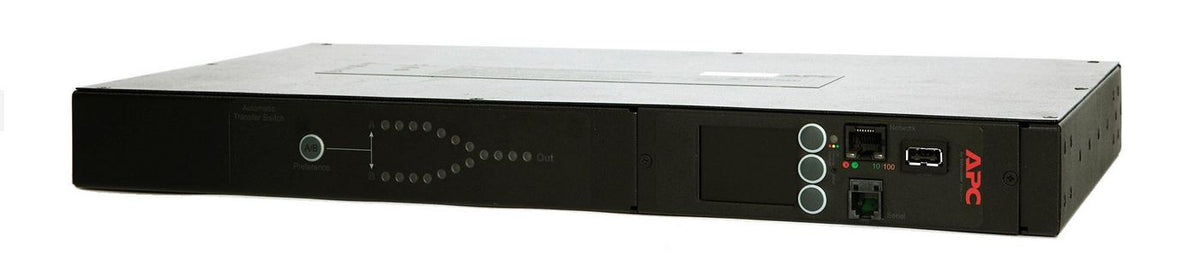

APC Rack ATS 230V
APC Rack ATS 230V
Low stock — only 2 left
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- ModelAP4422
- EAN731304333418
- BrandAPC
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
APC AP4422. Input operation voltage (min): 230 V, Input operation voltage (max): 230 V, AC input frequency: 50 - 60 Hz. Form factor: Rackmount, Rack capacity: 1U, Product colour: Black. AC outlets quantity: 2 AC outlet(s). Weight: 4.21 kg. Package width: 600 mm, Package depth: 349 mm, Package height: 114 mm
Provides redundant rack mount power to single-corded equipment.<br><br><b>10 kAIC Overcurrent Protection</b><br>Provides protection in the event of a significant overcurrent event.<br><br><b>Command line interface</b><br>Offers simultaneous remote management access through Telnet and SSH<br><br><b>Current Monitoring</b><br>Monitors the aggregate current draw per power distribution unit.<br><br><b>Cyber security</b><br>A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.<br><br><b>Quick Transfer Rate</b><br>Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.<br><br><b>Remote Management Capabilities</b><br>Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.<br><br><b>RoHS</b><br>Certifies that electronic devices don't contain hazardous metals and flame retardants<br><br><b>StruxureWare Data Center Expert compatible</b><br>Enables centralized management via StruxureWare Data Center Expert.
Specifications
| Power | |
|---|---|
| Input operation voltage (min) | 230 V |
| Input operation voltage (max) | 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 16 A |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output current | 16 A |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 2 AC outlet(s) |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 4.21 kg |
| Packaging data | |
| Package width | 600 mm |
| Package depth | 349 mm |
| Package height | 114 mm |
| Package weight | 5.95 kg |
Documents
- Brand
- APC
- Model / part no.
- AP4422
- EAN
- 731304333418
- Category
- Other
- Weight
- 4.21 kg. Package width: 600 mm, Package depth: 349 mm, Package height: 114 mm
Provides redundant rack mount power to single-corded equipment.<br><br><b>10 kAIC Overcurrent Protection</b><br>Provides protection in the event of a significant overcurrent event.<br><br><b>Command line interface</b><br>Offers simultaneous remote management access through Telnet and SSH<br><br><b>Current Monitoring</b><br>Monitors the aggregate current draw per power distribution unit.<br><br><b>Cyber security</b><br>A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.<br><br><b>Quick Transfer Rate</b><br>Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.<br><br><b>Remote Management Capabilities</b><br>Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.<br><br><b>RoHS</b><br>Certifies that electronic devices don't contain hazardous metals and flame retardants<br><br><b>StruxureWare Data Center Expert compatible</b><br>Enables centralized management via StruxureWare Data Center Expert.
Specifications
Power Input operation voltage (min) 230 V Input operation voltage (max) 230 V AC input frequency 50 - 60 Hz Input current 16 A Output operation voltage (min) 230 V Output operation voltage (max) 230 V Output current 16 A Design Form factor Rackmount Rack capacity 1U Product colour Black Display LCD Ports & interfaces AC outlets quantity 2 AC outlet(s) Operational conditions Operating temperature (T-T) -5 - 45 °C Storage temperature (T-T) -25 - 65 °C Operating relative humidity (H-H) 0 - 95% Storage relative humidity (H-H) 0 - 95% Weight & dimensions Weight 4.21 kg Packaging data Package width 600 mm Package depth 349 mm Package height 114 mm Package weight 5.95 kg Documents
