Lenovo DCG ThinkSystem 7ZT7A00493
Lenovo DCG ThinkSystem 7ZT7A00493
In stock — 7 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- Model7ZT7A00493
- EAN889488433605
- BrandLenovo
- ConditionNew, genuine
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Lenovo 7ZT7A00493. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Multicolour

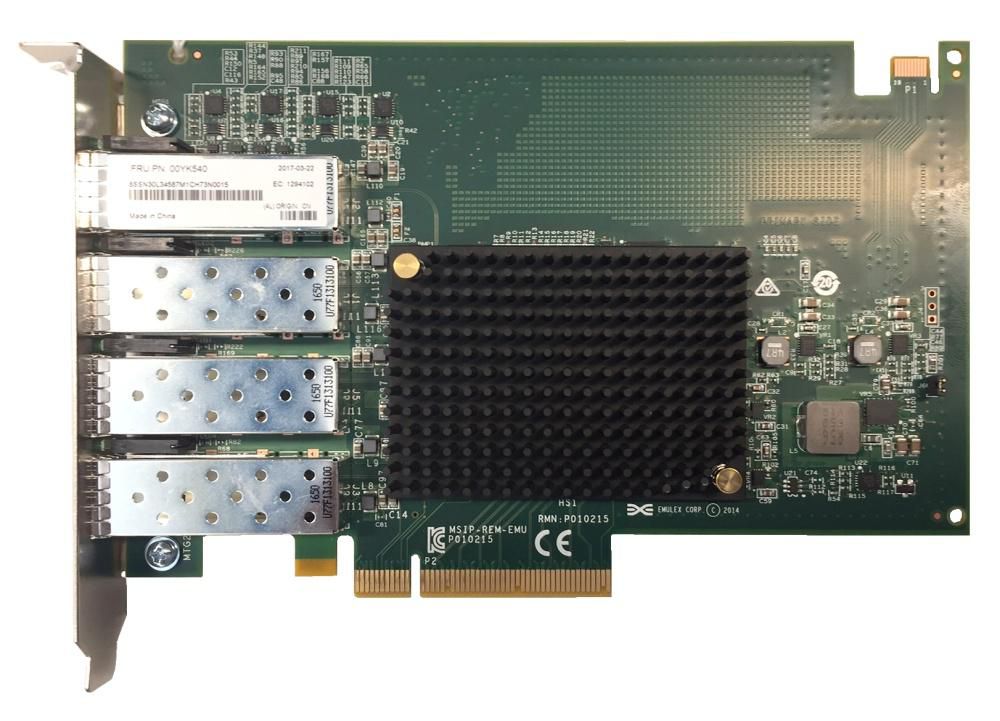

The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family, which includes the OCe14104B-NX 10 GbE adapter builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.<br><br>This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.<br>
- Dual-channel 10 Gbps Ethernet controller
- Based on the Emulex XE102-P2 ASIC
- PCI Express 3.0 host interface
- Line-rate 10 GbE performance
Specifications
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 3.0 |
| PCI Card form factor | Full-height |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Design | |
| Component for | Server |
| Product colour | Multicolour |
| Internal | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 167 mm |
| Height | 111 mm |
Documents
- Brand
- Lenovo
- Model / part no.
- 7ZT7A00493
- EAN
- 889488433605
- Category
- Network Cards
- Weight
- 0.2 kg
- Condition
- New, genuine
