Lenovo DCG ThinkSystem **New

Lenovo S4600. SSD capacity: 240 GB, SSD form factor: 2.5", Read speed: 500 MB/s, Write speed: 260 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation

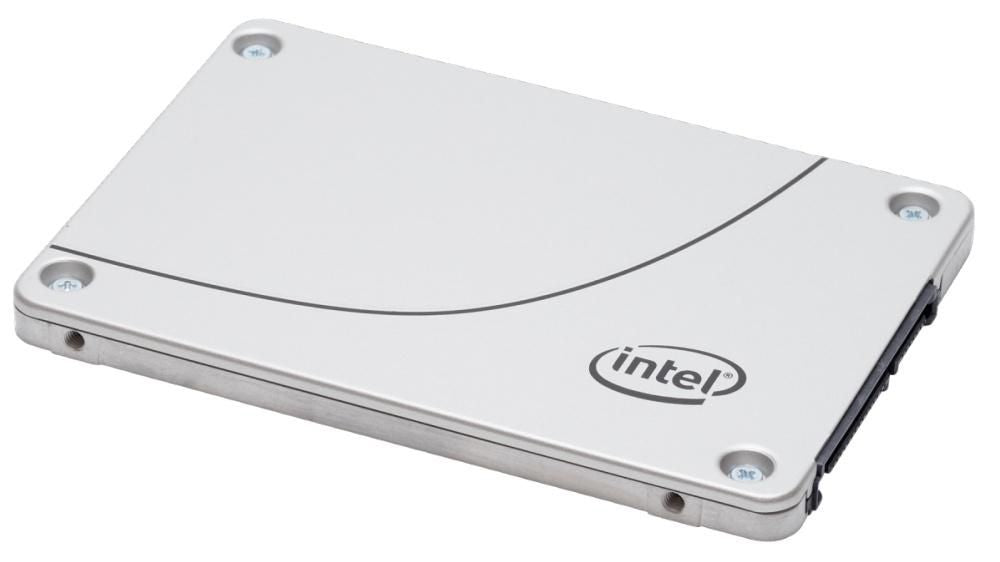

The Intel S4600 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.<br><br>The Intel SSD S4600 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.<br><br>The Intel S4600 Enterprise Mainstream SATA solid-state drive is shown in the following figure.<br><br>- Industry-standard 2.5-inch or 3.5-inch form factors<br>- Cost-effective Intel 3D NAND TLC Flash Memory<br>- Endurance of 3 drive writes per day (DWPD) for 5 years, using Intel High Endurance Technology (HET). The total number of bytes that can be written to the drive (TBW) is as follows<br> 240 GB drive: 1.40 PB<br> 480 GB drive: 2.95 PB<br> 960 GB drive: 5.25 PB<br> 1.92 TB drive: 10.84 PB<br>- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space<br>- High reliability and enhanced ruggedness<br>- Energy saving, with 5 W typical power consumption per drive<br>- Absence of moving parts to reduce potential failure points in the server<br>- S.M.A.R.T. support<br>- Advanced Encrypting Standard (AES) 256-bit encryption<br>- Full end-to-end data path protection<br>- Thermal throttling to extend the life of the drive<br>- Enhanced power loss data protection

• Industry-standard 2.5-inch or 3.5-inch form factors
• Cost-effective Intel 3D NAND TLC Flash Memory
• Endurance of 3 drive writes per day (DWPD) for 5 years, using Intel High Endurance Technology (HET). The total number of bytes that can be written to the drive (TBW) is as follows
• 240 GB drive: 1.40 PB
• 480 GB drive: 2.95 PB
• 960 GB drive: 5.25 PB
• 1.92 TB drive: 10.84 PB
• SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space

Specifications

Documents

• Brochure Lenovo 7SD7A05723 (PDF)
