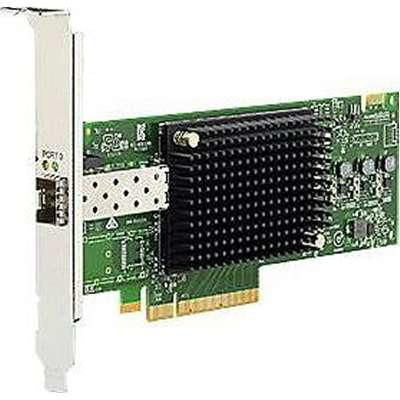

Lenovo DCG TopSeller Emulex 16Gb
Lenovo DCG TopSeller Emulex 16Gb
In stock — 26 units available
Order before 10:00 CET on a working day and it ships today. Delivered across Europe, flat €25.
- Model01CV830
- EAN889488417339
- BrandLenovo
- ConditionNew, genuine
Buying in volume or reselling? Write to info@nexakft.com or call +36 30 270 0378 for quantity pricing.
Couldn't load pickup availability
- Genuinesourced in Europe
- Ships todayorder before 10:00
- 14-day returns2-year warranty
Product details
Lenovo 01CV830. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Fiber. Maximum data transfer rate: 16000 Mbit/s. Product colour: Black, Green, Silver
The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.<br><br>The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Specifications
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCIe |
| Interface | Fiber |
| Fiber ports quantity | 1 |
| Fiber optic connector | FC, SFP+ |
| PCI version | 3.0 |
| Network | |
| Maximum data transfer rate | 16000 Mbit/s |
| Full duplex | Yes |
| Web-based management | Yes |
| Maximum operating distance | 150 m |
| Design | |
| Component for | Server |
| Product colour | Black, Green, Silver |
| Internal | Yes |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 10000000 h |
| Certification | AS/NZS CISPR22:2009+A1, Class A Australian EMC Framework (RCM) cUR recognized to CSA 22.2, No. 60950-1-07 EN55022:2010, Class A EN55024:2010 EN55032:2012 EU (CE Mark) FCC Rules, Part 15, Class A Industry Canada, ICES-003, Class A Japan VCCI, Class A Korea MSIP, Class A RoHS Compliant (Directive 2011/65/EU) TUV certified to EN60950-1+A11+A1+A12+A2 Taiwan BSMI, Class A UL recognized to UL60950-1 2nd Edition |
| Compatible products | System x3500 M5 Type 5464 System x3550 M5 Type 5463 System x3550 M5 Type 8869 System x3650 M5 Type 5462 System x3650 M5 Type 8871 System x3750 M4 Type 8753 System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4) NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4) |
| System requirements | |
| Linux operating systems supported | RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0 |
| Other operating systems supported | VMware vSphere ESXi |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Depth | 168 mm |
| Height | 69 mm |
| Packaging data | |
| Low-profile bracket | Yes |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging content | |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| PCI-SIG* SR-IOV Capable | Yes |
